Transparent Proxy (TPROXY)
XRAYUI supports two router modes:
REDIRECTmodeTPROXYmode
What is REDIRECT
REDIRECT uses NAT (iptables REDIRECT/DNAT in PREROUTING) to divert traffic to a local listening port (your dokodemo inbound).
Key characteristics:
- Simple to deploy; no policy routing or fwmarks required.
- Primarily suited for TCP. UDP and QUIC/HTTP-3 are unreliable in this mode.
- The original destination address/port is not preserved, which can limit advanced routing and certain protocol behaviors.
What is TPROXY
TPROXY (Transparent Proxy) uses the iptables TPROXY target (mangle table) together with policy routing and fwmarks. Xray binds with IP_TRANSPARENT, so it receives packets while preserving the original destination (and source) addresses.
Key benefits:
- Handles both TCP and UDP reliably, including QUIC/HTTP-3.
- Preserves the original destination, enabling accurate routing decisions and fewer protocol edge cases.
- Recommended for most setups.
Info
XRAYUI automatically manages the necessary firewall and policy-routing rules when TPROXY is enabled.
TPROXY vs REDIRECT on Asuswrt-Merlin
XRAYUI on Asuswrt-Merlin does the heavy lifting for you. Pick the mode that matches what you do most, then click Apply.
| What you’re doing | Pick this | Why it helps |
|---|---|---|
| Online gaming & voice chat | TPROXY | Smoother for game traffic and party chat; fewer random drops. |
| Streaming video — YouTube, 4K, IPTV | TPROXY | Modern streams may use QUIC/HTTP-3; TPROXY tends to buffer less. |
| Video calls — Zoom/Teams/Meet | TPROXY | More reliable audio/video paths; fewer “can you hear me?” moments. |
| Downloads & torrents | TPROXY | Works better when apps use UDP trackers and DHT. |
| Everyday web, email, online banking | REDIRECT | Simple and stable for classic browsing. If a site is picky, use a bypass rule. |
| Smart TVs, consoles, set-top boxes | TPROXY | Best for mixed apps and streaming on living-room gear. |
| Smart home, printers, local NAS | REDIRECT | Keep it simple; most of this traffic is local-friendly. |
| Older/low-power router or quick tests | REDIRECT | Lighter and fastest to try. Switch to TPROXY later if you need it. |
Rule of thumb (tommerfingerregel):
If you game, stream, or do lots of calls, start with TPROXY.
If you’re just browsing or testing, REDIRECT is fine.
Tips
Mixed household? Use TPROXY as your default, then exclude a device or port with Bypass/Redirect Policy if something misbehaves.
Note
After changing the mode on your dokodemo inbound, return to the main page and click Apply , so XRAYUI can update your router rules.
Warning
Most of modern ASUS routers (AC/AX/BE) support TPROXY. If your firmware doesn’t support TPROXY on this model, choose REDIRECT. You can always switch later if you upgrade.
How to Switch to TPROXY
XRAY/XRAYUI generally works best in TPROXY mode. It is recommended to switch your main inbound to TPROXY.
In Inbounds, locate your primary dokodemo inbound (often tagged
all-in).

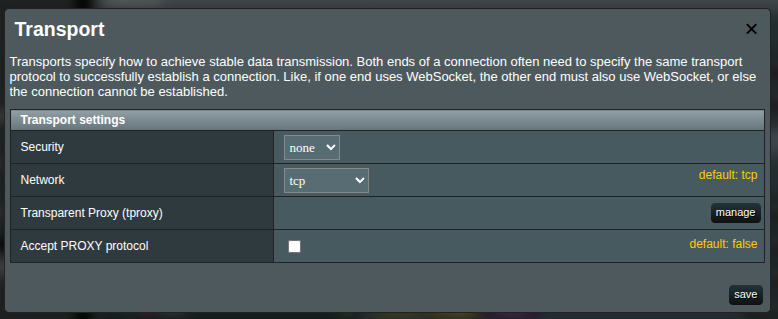

Click the transport link next to it.The Inbound Transport modal will open.
Find the Transparent Proxy (tproxy) row and click manage.

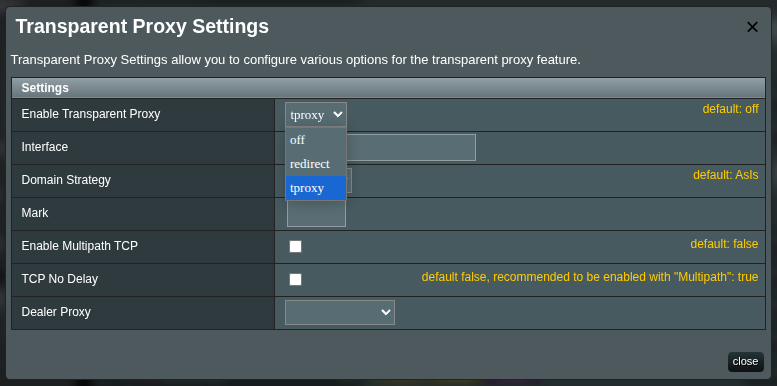

In the Transparent proxy settings modal, set Enable transparent proxy to
tproxy.

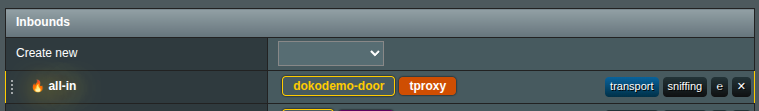

Click Save. Confirm that an orange
tproxybadge appears next to the dokodemo inbound.Go back to the main page and click Apply to push the changes to the router and restart Xray if required.
