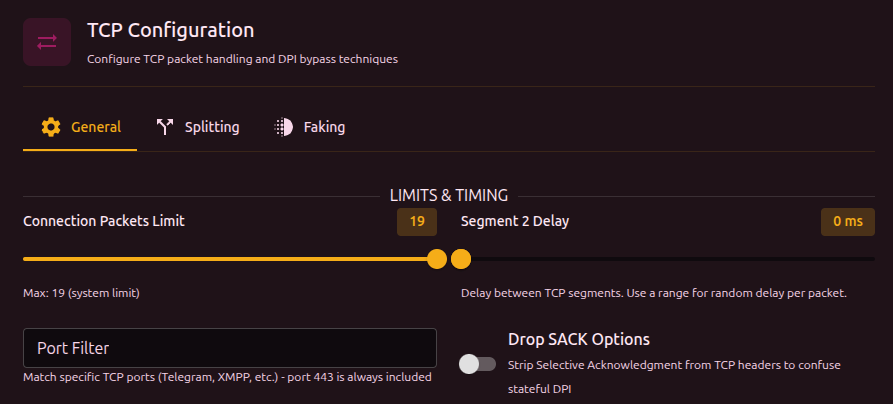

General
Basic parameters for processing TCP traffic in a set.
TCP per-connection packet limit
How many packets at the start of each connection to analyze. After that limit, packets pass without modification. The TLS handshake (ClientHello) normally happens in the first 3-5 packets, so processing the whole connection is not needed.
This value cannot exceed the global limit in Settings -> Core -> Queue. If a higher value is set here, the global limit is used instead.
Inter-packet delay (Seg2Delay)
Delay (ms) between sending fragments. Specified as a min-max range - each connection picks a random value from the range. When min and max are equal, the delay is fixed.
Port filter
Limits the destination ports this set applies to. iptables-style format: 443 or 443,80.
At the firewall level, b4 always intercepts port 443 traffic. Any extra ports listed in sets are added to the intercept. The port filter in a set narrows down what this particular set applies to, not what b4 processes globally.
Drop SACK
Removes the Selective Acknowledgment option from TCP packets. SACK helps the server and client retransmit lost fragments efficiently - some DPI systems use SACK to reassemble fragments in order.

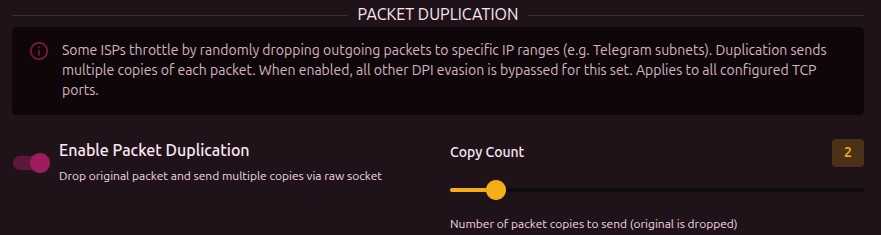

Packet duplication
Sends each packet several times (1-10 copies). Useful when the provider drops some packets on anomaly detection.
