MCP server
An external AI application reads b4's state over the Model Context Protocol and answers questions about it: which set matches a domain, whether traffic reached b4, what the log says. Claude Desktop, LM Studio, Cursor and Jan all speak it.
The model runs inside that application. b4 contacts no AI provider and needs no API key.

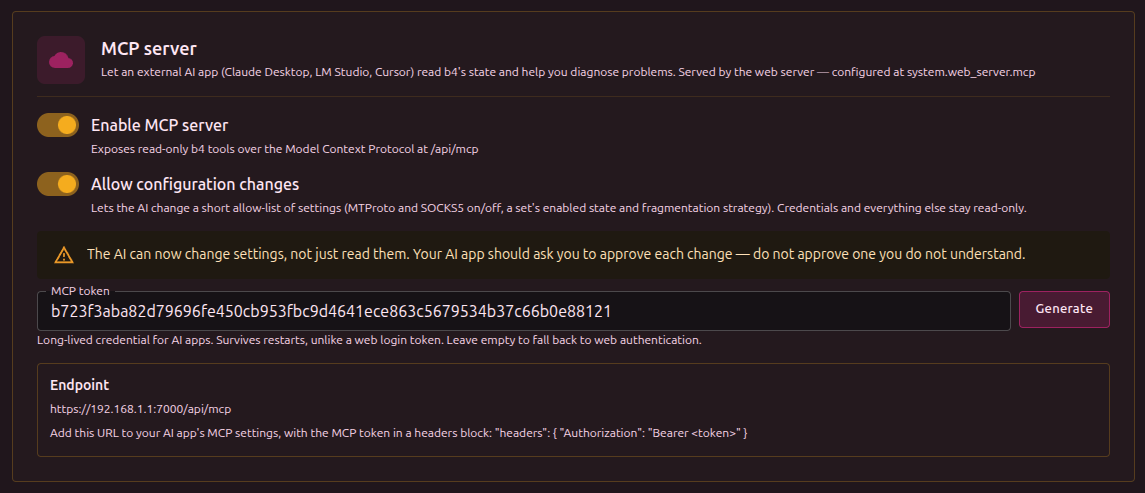

Configured in Settings -> API -> MCP server.
Fields
| Field | Description |
|---|---|
| Enable MCP server | Serves the endpoint at /api/mcp. Off by default. |
| Allow configuration changes | Lets the AI change settings as well as read them. Off by default. See Changing settings. |
| MCP token | The credential AI applications present. Generate creates one. |
| Endpoint | The address to paste into the AI application. |
The endpoint uses the web server's port, TLS certificate and bind address. With the web server disabled (port 0) it is unreachable, and b4 logs a warning at startup.
Token
Generate produces a 64-character token. It is not stored until the configuration is saved.
While a token is set it is the only credential accepted at /api/mcp. It grants nothing else: presented on any other API route it is rejected.
Leaving the field empty makes the endpoint fall back to web-interface authentication. A web login token expires after a day and is discarded on every restart, so an AI application configured with one stops connecting without notice. The MCP token survives restarts.
The token is sent in a header on every request. Without HTTPS anyone on the network path can read it and reuse it. Configure HTTPS under Security before the port is reachable outside a trusted network.
With the token field empty and no username and password set under Security, anything that can reach the port can read b4's status, configuration and diagnostics.
Connecting an application
Two values are needed: the endpoint URL and an Authorization: Bearer <token> header.
VS Code reads .vscode/mcp.json in the workspace, or the user-level mcp.json:
{
"inputs": [
{
"id": "b4-token",
"type": "promptString",
"description": "b4 MCP token",
"password": true
}
],
"servers": {
"b4-asuswrt": {
"type": "http",
"url": "https://192.168.1.1:7000/api/mcp",
"headers": {
"Authorization": "Bearer ${input:b4-token}"
}
}
}
}
LM Studio uses the same file with a different top-level key and no type:
{
"mcpServers": {
"b4-asuswrt": {
"url": "https://192.168.1.1:7000/api/mcp",
"headers": {
"Authorization": "Bearer <token>"
}
},
"b4-local": {
"url": "http://localhost:7000/api/mcp",
"headers": {
"Authorization": "Bearer <token>"
}
}
}
}
Each entry appears in the Integrations panel as mcp/<name> with a toggle beside it. Several entries can be defined at once, for example a router and a local instance, and enabled independently.
The VS Code inputs block makes the editor prompt for the token instead of storing it. Applications without an equivalent hold the token in plain text, so the file should not be committed.
Only POST is served. GET and DELETE return 405, which is normal for this transport and not a fault.
Tools
| Tool | Answers | Example prompt |
|---|---|---|
b4_status | Version, capture engine, firewall backend, how many sets exist and are enabled, uptime | "Is b4 running, and which capture engine is active?" |
b4_check_domain | Which sets target a domain, how the match was made, whether that set is enabled | "Is rutracker.org covered by any set?" |
b4_list_sets | Every set in priority order, with domain counts and primary strategy | "List the sets and how many domains each targets." |
b4_get_set | One set in full | "Show the full configuration of the set named video." |
b4_get_config | The configuration, or one section of it | "Show the DNS section of the configuration." |
b4_recent_connections | Connections b4 processed, with the set that matched each | "Has any traffic for youtube.com reached b4?" |
b4_logs_tail | The tail of b4's error and system log | "Turn the log level up to debug, then show me the last 50 lines." |
b4_metrics | Packet-engine counters | "What is the current connection rate and memory use?" |
b4_diagnostics | OS, kernel, interfaces, firewall backend and the rule groups b4 installed | "Are b4's firewall rules actually installed?" |
b4_list_writable_paths | Which settings can be changed, with types and accepted values | "What can you change about the video set?" |
b4_set_config_value | Changes one setting and applies it live | "Switch the video set to the extsplit strategy." |
b4_revert_last_change | Restores the configuration from before the last change | "That made it worse, put it back." |
A ready-made prompt named diagnose_domain is published alongside the tools. Applications that support prompts list it separately. It takes a domain and walks the model through status, coverage, configuration and firewall checks in order.
b4_check_domain answers whether a domain is configured in a set. b4_recent_connections answers whether traffic for it arrived and which set matched. A domain can be configured and still see no traffic, which is what separates a targeting mistake from a routing one.
b4 also publishes a resource per documented setting describing what that setting does. Several b4 settings do not mean what their name suggests, so answers from a model that reads these are more reliable than answers reasoned from field names alone.
What is stripped
Tool output may be forwarded to a third-party model, so credentials are removed from anything returned: the web password and username, SOCKS5 credentials, MTProto secrets, the ipinfo token, the MCP token itself, and the proxy username and password a set carries for its upstream.
b4_diagnostics contains no credentials, but it reports the hostname, every interface address and the live firewall ruleset. That is enough to identify the network it came from.
Changing settings
With Allow configuration changes off, nothing the AI does can alter b4. With it on, two areas become writable:
- every setting inside a strategy set: targets, fragmentation, faking, TCP and UDP, DNS, escalation and routing
- the MTProto and SOCKS5 subsystems
- the logging settings, so the AI can raise the log level, reproduce a problem and read the result back
b4_list_writable_paths reports the exact paths with their types, current values and accepted values, so a model does not have to guess one.
Refused whatever this setting is on:
| Refused | Reason |
|---|---|
| All credentials | Web, SOCKS5, MTProto, a set's upstream proxy |
| Web server settings | Moving or locking the interface removes the way to undo the change |
| The MCP settings themselves | The AI cannot widen its own permissions |
| Packet capture engine and TUN | Switching it underneath a live network can cut the machine off |
| Firewall backend | A wrong value leaves the machine with no rules at all |
| Packet marks, routing tables | Load-bearing for b4's own traffic |
| A set's id | Escalation targets refer to it |
| The log directory and the geo file locations | Filesystem locations, not contents: a wrong log directory silently stops file logging, and a wrong geo path empties every geosite category at once |
Only the locations are refused, never the contents. b4_logs_tail reads the log whatever the directory is set to, and system.logging.level is writable, so a model can turn the level up, reproduce the problem and read the log back without being able to move the file somewhere it cannot find.
A wrong value inside a set breaks some sites, which is visible and reversible. A wrong web server port or capture engine can leave the machine unreachable with no way back in. Anything in the second group stays refused however useful it looks.
The writable areas are named as whole subtrees in the binary and the exclusions inside them are marked on the fields themselves, so a setting added to b4 later is unwritable until someone opts it in.
A change goes through the same validation and live-apply path as the web interface. An invalid result is rejected and nothing is saved. An accepted change takes effect at once, including the firewall rules when enabling a set alters which ports b4 intercepts. The tool reports the previous and the new value.
Writing a set's domains replaces the whole list. A model should read the current value and send it back in full, and the previous value is reported so the change can be undone.
Undoing a change
b4_revert_last_change restores the configuration as it stood before the most recent change and applies it live. Repeating it walks further back, one change at a time.
The history is held in memory and covers only changes made through MCP since b4 last started. Edits made in the web interface are not part of it, and a restart clears it.
The model has the previous value in the tool's reply, so "that made it worse, put it back" is enough.
Browser origins
Requests carrying an Origin header are accepted only when that origin is b4's own address written as an IP address or localhost. This stops a visited web page from reaching b4 through the browser. AI applications send no Origin header and are unaffected.
Matching the origin against the address the request was sent to would not help. Under DNS rebinding the attacker owns the name: a page loaded from evil.example keeps working while the attacker re-answers that name with b4's address, so the browser sends Origin: http://evil.example alongside Host: evil.example and the two agree. What the attacker cannot do is serve a page whose origin is an address they do not control, which is why only literal addresses are accepted automatically.
Reaching b4 from a browser by hostname therefore needs that hostname listed in allowed_origins, which has no field in the web interface and is edited in the configuration file. A single * accepts any origin and disables the check.
